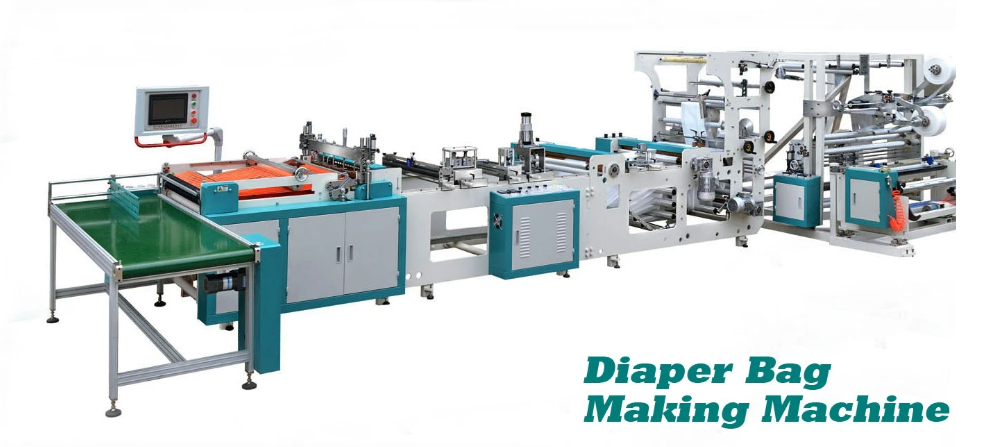

    BOPP HDPE LDPE Diaper Bag Making Machine 21KW High Performance

    Ask Lasest Price
    Brand Name : Xinda Pelosi
    Model Number : XP-800SBD
    Certification : Machinery Test Report
    Price : To be negotiated
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300 Set/Sets per Year
    Delivery Time : 70 days
    • Product Details
    • Company Profile

    BOPP HDPE LDPE Diaper Bag Making Machine 21KW High Performance


    Automatic Baby Diaper Bag, Diaper Bag Making Machine ,Plastic Bag Making Machine With Spare Parts


    Specification :


    MATERIAL

    BOPP,POF,HDPE,LDPE

    FEEDING

    1600mm 800mm

    FEEDING SPEED

    45M/MIN

    CAPACITY

    ≤80PCS/MIN

    BAG LENGTH

    ≤800mm

    BAG WIDTH

    100-700mm

    VOLTAGE

    220V/380V, 50Hz/60Hz

    POWER

    21KW

    DIMENSION

    9900*2500*1700 mm

    WEIGHT

    3500KGS

    Voltage

    380v, 50 Hz, 3 phases

    220v, 50 Hz, 1 phase

    Working space dimension

    10000*2600*1900 mm (length*width*height)


    Item

    Name

    Model

    No.

    Control

    Main control

    PLFPXC40T

    1


    Screen

    10 inch touch screen

    1


    Photocell

    KT5W-2N1116

    1

    Main transmission

    Main motor

    2KW servo motor& drive

    1SETS

    Unwinding part

    Motor

    0.75KW 3ph asynchronous motor

    1


    Inverter

    0.75KW

    1


    EPC

    SKA21

    1


    Constant tension system

    TEC-600

    1


    Shaft less unwinding, Pneumatic loading

    1

    Traction part

    Traction Motor

    1.5KW servo motor & drive

    2SETS

    Conveying part

    Motor

    0.75KW 3ph asynchronous motor

    2


    Inverter

    0.75KW

    2

    Discharge part

    Motor

    0.75KW 3ph asynchronous motor

    1



    0.75KW

    1

    Yaskawa

    Inverter

    Japan

    Bottom tape inserting part

    Motor

    250W DC reducer

    2

    Temperature control

    Temperature control module

    2unit

    Pneumatic part

    Pneumatic component


    several

    Punching part

    Puncher

    D-cut hole, T-shirt hole,Tear hole, air hole

    4


    Spare Parts List

    1 Heating tube 2/set

    2 Teflon tape 10/pcs

    3 Thermocouple 4/pcs

    4 Heating belt 2/pcs

    5 (8")flex banner 1/pcs

    6 + Screw drive 1/pcs

    7 一Screw drive 1/pcs

    8 Inner hexagon spanner 1/set

    9 Oil gun 1/pcs

    10 Manual book 1/pcs


    FQA :


    1. Your company is a manufacture or a trading company?

    We are a manufacture. We also have a trading company to do export work.


    2. What is the terms of payment you accept?

    We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the L/C,western union,paypal,private account,cash and others.


    3. Where is your factory located ? How can I visit there?

    Our factory located in Guangzhou city, the nearest airport is BAIYUN airport. If you need,

    we can we pick you up from airport or train station.


    4,What about the warranty?

    All of our machines have 1 year warranty.

    In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life service, buyer pay for the material cost of exchanging spare parts and repairing.
