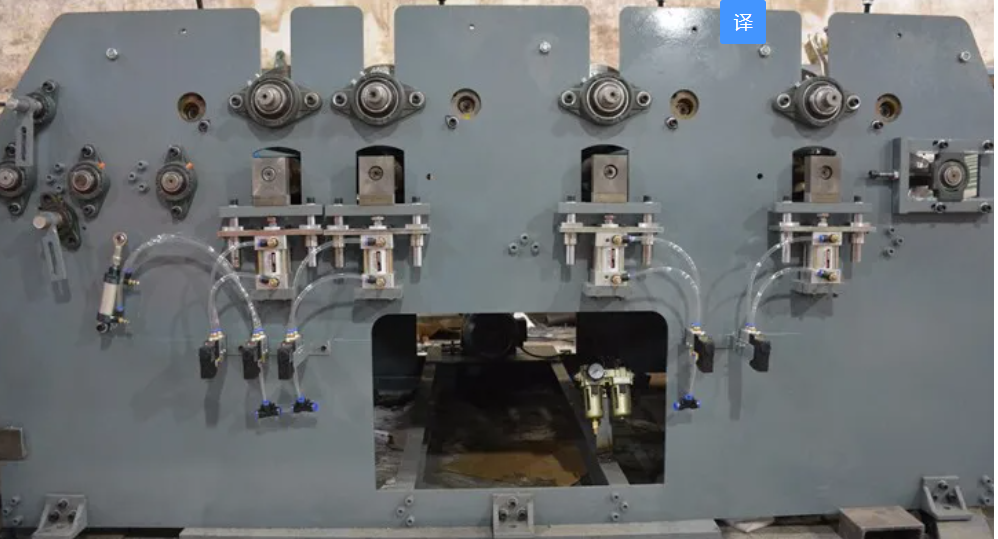

1.Machine Structure Material
Adopt 10mm Steel Plate To Make Machine Structure.Steel Plate Is
Process By Laser Machine,Make Machine Structure High Precision.
Highly Improve Printing Precision And Reduce Machine Noise.

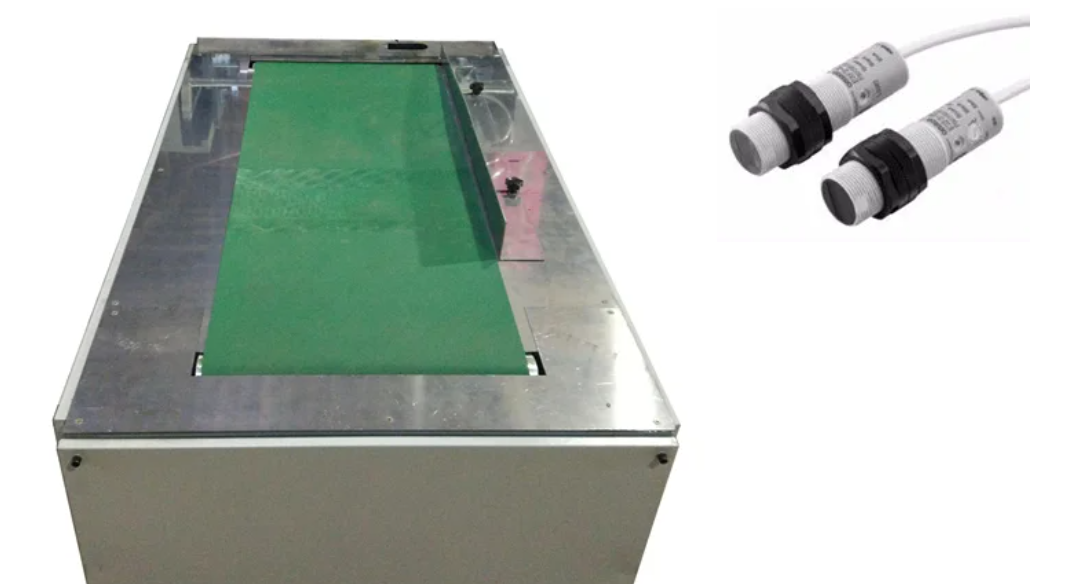

2.Full Auto Feeder Table. Can Loading 100cm Length Bag Stack
There have a photocell eye to detect bag, When bag move to downside
of mechanical hand. Convey belt will stop ,then machine hand to do
feeding.
There have position location plate in side of work table ,can help
fix bag well on convey belt.

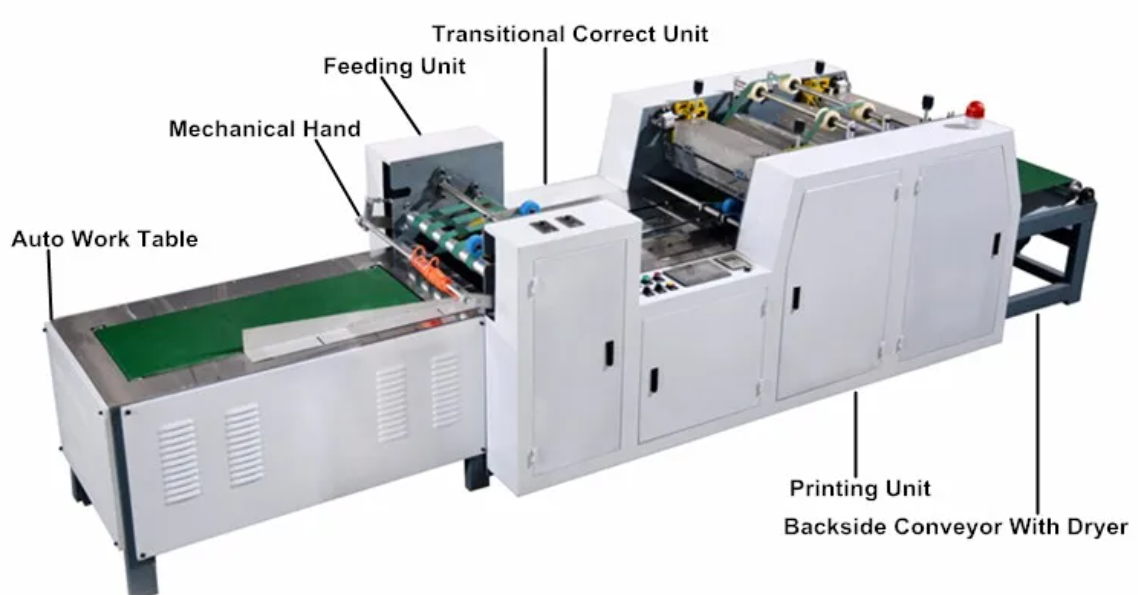

3.Mechanical Hand To Do Feeding
Adopt mechanical hand to feed paper bag ,then send bag to
transitional unit.
4.Whole Machine Is Synchronous Control By PLC System.

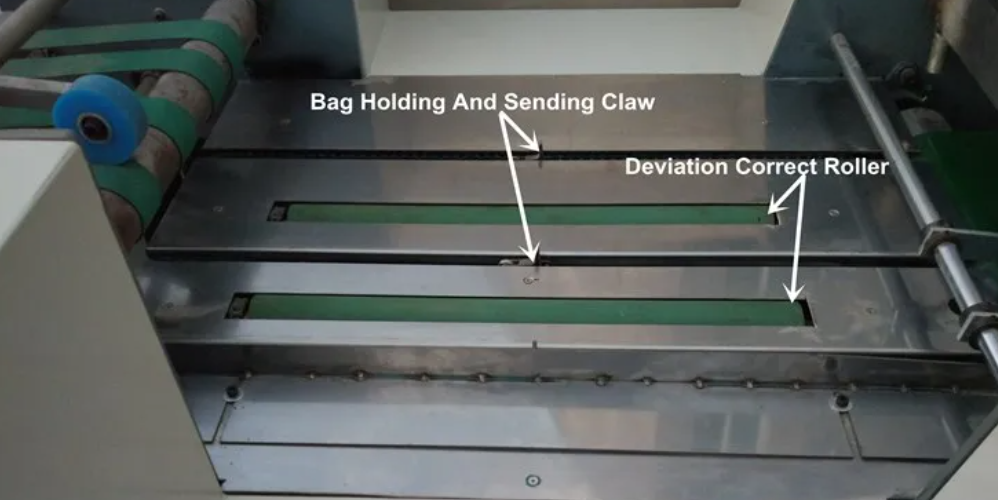

5.Transitional Correct Unit & Printing Entrance
When bag be feed by mechanical hand and send to transitional
part,sending claw will hold bag and move to printing
entrance,Deviation correct roller will correct deviation and make
bag in flat sending direction.
There is a Electronic Photocell eye on entrance(New type photocell
eye can check Black Color Bag.) ,when bag come ,it will send sign
to printing cylinder to start printing.
6.Ink Circular System
Anilox Roller + Rubber Roller + Ink Circular Pump+Air
Compressor,automatic circular ink,make ink always clean ,have a
colorful printing effect.
220 Mesh anilox roller. it can transfer ink equably ,especially
when you print 2mm size words on material. Anyway,It save Printing
Ink.
Shore Hardness 90 Oilproof Rubber Roller,Oilproof character make it
long service life.
7. 4CM Thickness Special Customize Gear.
Our gear is customize ,4cm thickness , make machine work much more
steady , fast , with low noise, create a good environment for your
worker.
Parameter:
Model | XDP-A-500-2 | XDP-A-500-3 |
Print Color | 2Colors | 3Colors |
Material Width | 150(mm)-450(mm) | 150(mm)-450(mm) |
Material Length | 200(mm)-500(mm) | 200(mm)-500(mm) |
Max.Effective Printing Width | 450(mm) | 450(mm) |
Max.Effective Printing Length | 500(mm) | 500(mm) |
Print Cylinder Diameter(mm) | 300(mm) | 300(mm) |
Print Speed | 30-60pcs/min | 30-60pcs/min |
Total Power | 2.5KW | 3KW |
Printing Plate Thickness | 2.84-5(mm) | 2.84-5(mm) |
Machine Demension(mm) | L4200*W1200*H1200 | L4700*W1200*H1200 |
Machine Weight(mm) | 1200Kgs | 1400Kgs |
