    380V 50Hz Automatic Kraft Food Paper Bag Production Machine With Flat Handle

    Ask Lasest Price
    Brand Name : Xinda Pelosi
    Model Number : XPM
    Certification : Machinery Test Report
    Price : To be negotiated
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 20 Set/Sets per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

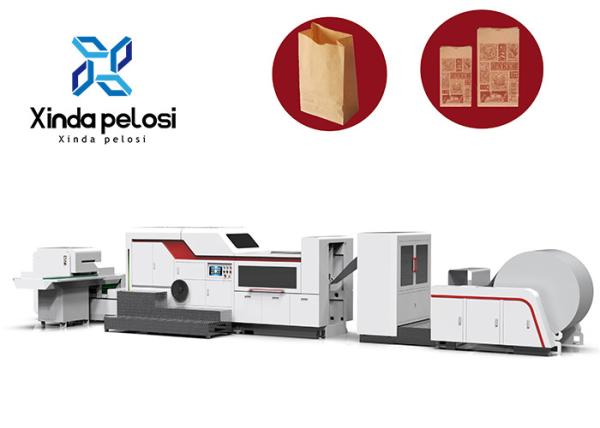

    380V 50Hz Automatic Kraft Food Paper Bag Production Machine With Flat Handle



    Professional Factory Automatic Kraft Food Paper Bag Production Machine With Flat Handle

    Specification :


    Kraft Food Paper Bag Making Machine Price
    This machine can use the rolling paper, which is made of primary color paper or printed to produce square bottom paper bag to one time. This machine can produce various of paper bags, with fast speed, high production efficiency, is an ideal equipment for paper bag production.
    This machine is composed of rolling paper feed (hydraulic feeding, automatic deviation correction, constant tension), side glue, printing paper electric eye tracking, original paper into roll, fixed length traction cutting, bag bottom indentation opening bottom, bag bottom gluing folding forming and bag output. The whole machine is controlled by the computer central control system, the touch screen display, and the servo motor controls the length of the paper bag.
    According to customer needs, two/ four-color printing machine, Paper bag windowing device and paper bag hand holing device or paper handle bar device can be customized.
    Model
    XDFD-220
    XDFD-280
    XDFD-330
    XDFD-450
    XDFD-540
    Width of Bag(mm)
    80-220
    120-280
    150-330
    220-450
    250-540
    Length of Bag(mm)
    150-320
    225-470
    225-470
    220-450
    250-540
    Width of Bag Bottom
    50-120
    60-160
    60-180
    80-220
    120-260
    Paper Grams(g/m2)
    50-130
    60-160
    60-160
    80-160
    90-160
    Inside Diameter Of Paper Core(mm)
    76
    76
    76
    76
    76
    Maximum Discharge Diameter(mm)
    ɸ1200
    ɸ1200
    ɸ1200
    ɸ1200
    ɸ1200
    Max Speed(pcs/min)
    200
    180
    160
    150
    120
    Total Power(kw)
    10
    12
    12
    15
    18
    Machine Weight (kg)
    5500
    7000
    8000
    10000
    11500
    Machine Size(mm)
    9000*3200*1800
    10500*3600*1900
    10500*3700*1900
    10500*3800*1900
    10500*3900*1900

    Production method :

    Kraft paper bags because of their environmental characteristics, by the people are optimistic, especially in European countries are almost all using kraft paper bags, so there are several kraft paper bag practices.


    1, small white kraft paper bags, generally a large number of bags, a wide range of use, because many businesses require this kind of kraft paper bags cheap and durable, usually the practice of this kraft paper bag is machine formed, machine attached rope, completely operated by the machine.


    2, the practice of medium-sized kraft paper bags, under normal circumstances, medium-sized kraft paper bags are made of kraft paper bags after the machine is fitted and formed by people manually affixed rope, due to the current domestic kraft paper bag molding equipment is limited by the molding size, and kraft paper bag attaching rope machine can only be attached to the smaller handbag rope, so the practice of kraft paper bags is limited by the machine. Many bags cannot be made by machines alone.


    3, large bags, kraft paper bags with reverse head, thicker kraft paper bags, these kraft paper bags are purely handmade, at present, there is no machine that can solve these kraft paper bags forming, can only be handmade, such kraft paper bags have higher production costs, the number will not be very large.


    4, no matter what kind of kraft paper bag above, if the number is not large enough, it is generally made by hand, because the machine makes kraft paper bags with large loss, there is no way to solve the small number of kraft paper bags.
