New Style Fast Speed Biodegradable Paper Tea Food Packaging Bags
Making Machine
Specification :
Model | XDFD-180 | XDFD-220 | XDFD-280 | XDFD-330 | XDFD-450 |
Width of Bag(mm) | 80-180 | 80-220 | 100-280 | 150-330 | 220-450 |
Length of Bag(mm) | 150-320 | 145-320 | 225-450 | 220-450 | 210-450 |
Width of Bag Bottom | 50-105 | 60-120 | 60-160 | 60-160 | 80-180 |
Paper Grams(g/m2) | 50-130 | 50-130 | 60-160 | 60-160 | 80-160 |
Inside Diameter Of Paper Core(mm) | 76 | 76 | 76 | 76 | 76 |
Maximum Discharge Diameter(mm) | ɸ1200 | ɸ1200 | ɸ1200 | ɸ1200 | ɸ1200 |
Max Speed(pcs/min) | 200 | 200 | 180 | 160 | 150 |
Total Power(kw) | 10 | 10 | 12 | 12 | 15 |
Machine Weight (kg) | 5000 | 5500 | 7000 | 8000 | 9000 |
Machine Size(mm) | 9000*3000*1800 | 9000*3500*1800 | 10500*3600*1900 | 10500*3700*1900 | 10500*3800*1900 |
The difference between the bag type automatic packaging machine and
the bag type packaging machine :
1. Compare the bag packaging machine and the bag packaging machine:
The bag type automatic packaging machine is usually composed of two
parts: the bag feeding machine and the weighing machine. The
weighing machine can be a weighing type or a screw type, and
particles and powder materials can be packed.
Bag packaging machine is usually composed of two parts: bag making
machine and weighing machine, weighing machine can be weighing type
or screw type, particles, powder materials can be packed.
2. The principle of the bag packaging machine and the bag packaging
machine:
The working principle of the bag automatic packaging machine is to
use the manipulator to take the user's prefabricated bag, open the
bag, bag and seal, and at the same time complete the filling,
coding and other functions under the coordinated control of the
microcomputer, so as to achieve the automatic packaging of the
prefabricated bag. Its characteristic is that the robot replaces
the manual bagging, which can effectively reduce the pollution of
the packaging link, and improve the automation level, which is
suitable for the small size and large volume automatic packaging of
food, condiments and other products.
Bag making packaging machine is the packaging film directly into
the bag, and in the bag making process to complete the measurement,
filling, coding, cutting and other actions of the automatic
packaging equipment, packaging materials are usually plastic
composite film, aluminum platinum composite film, paper bag
composite film, etc., characterized by high degree of automation,
high price, good image, good anti-counterfeiting. Suitable for
washing powder, condiments, puffed food and other products of small
size, mass automatic packaging.

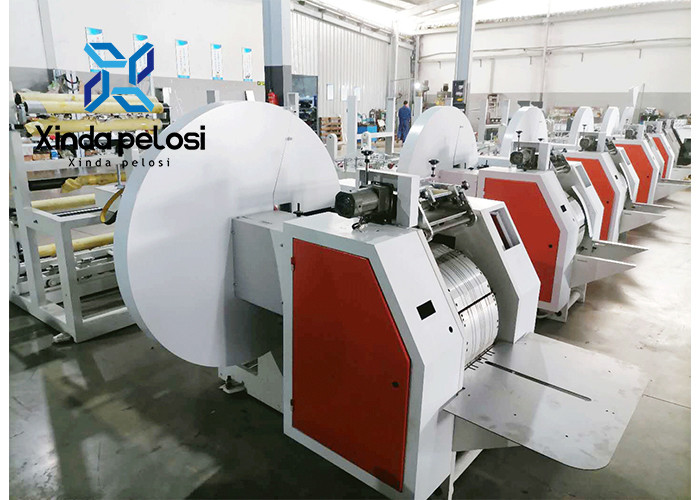

PRODUCT INTRODUCTION:
This machine can use the rolling paper, which is made of primary
color paper or printed to produce square bottom paper bag to one
time. This machine can produce various of paper bags, with fast
speed, high production efficiency, is an ideal equipment for paper
bag production.
This machine is composed of rolling paper feed (hydraulic feeding,
automatic deviation correction, constant tension), side glue,
printing paper electric eye tracking, original paper into roll,
fixed length traction cutting, bag bottom indentation opening
bottom, bag bottom gluing folding forming and bag output. The whole
machine is controlled by the computer central control system, the
touch screen display, and the servo motor controls the length of
the paper bag.
According to customer needs, two/ four-color printing machine,
Paper bag windowing device and paper bag hand holing device or
paper handle bar device can be customized.
FAQ :
1.Q:what can you buy from us?
Paper Bag Making Machine,Non-voven Bag Making Machine,Printing
Machine,Disposable epidemic prevention equipment machine
2. Q: why should you buy from us not from other suppliers?
we have more than 15 years of rich experience for machinery
manufacturing.
3. Q: what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after
receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
