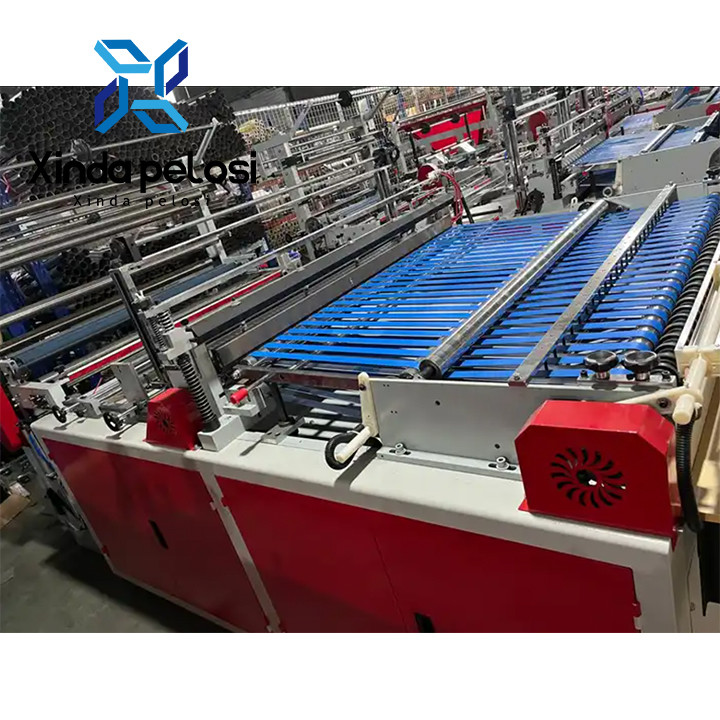

Bag Making Machine For Hotels, Garment Shops, Building Material
Shops Manufacturing Plant Etc
Specification :
Voltage | 220V/380V |
Total Power | 16.5KW |
Average Power | 7.5KW |
Knife width | 670mm * 2pcs |
Film width | 120-650mm |
Bag Length | New Product |
Max Speed | 200pcs/min*2 |
Machine Length | 3800mm |
Machine Width | 1900mm |
Machine Height | 1300mm |
Machine Weight | 1300KG |
The principle of a Courier Bag Making Machine involves several key
steps and components to efficiently produce courier bags. Here's an
overview of the principle:
Material Feeding: The machine begins by feeding the raw material, typically
polyethylene (PE) or polypropylene (PP) film rolls, into the
machine. These rolls serve as the primary material for
manufacturing courier bags.
Material Cutting: The film rolls are then accurately cut into the desired width and
length using precision cutting mechanisms within the machine. This
ensures uniformity and consistency in the size of the courier bags.
Sealing and Welding: The cut film pieces are then fed into a sealing and welding
section of the machine. Here, heat sealing technology is employed
to seal the edges of the film together, forming the sides and
bottom of the courier bags. High-frequency welding or ultrasonic
welding may also be used for certain types of courier bags.
Bag Forming: Once the sides and bottom of the bags are sealed, the machine
proceeds to fold and shape the film into the desired bag
configuration. This may involve folding the film longitudinally to
create the bag's sides and bottom, followed by transverse sealing
to form the bag's bottom and closure.
Handle Attachment (Optional): Some courier bags may include handles for easy carrying. In such
cases, the machine may incorporate a handle attachment mechanism to
add handles to the bags during the manufacturing process.
Printing (Optional): If required, the machine may include a printing station where
logos, barcodes, shipping information, or other customizations can
be printed directly onto the courier bags as they are being
produced.
Cutting and Stacking: Once the bags are formed and any printing or handle attachment is
completed, they are cut from the continuous roll and stacked for
packaging or further processing. Automatic stacking mechanisms
ensure efficient handling and stacking of the finished bags.
Quality Control: Throughout the manufacturing process, quality control measures
are implemented to ensure that the courier bags meet the desired
specifications in terms of dimensions, seal strength, printing
accuracy, and overall quality.
Main features:
1. Triangle Folder with single unwinder and friction brake disk
2. Soft sheets or dancing rollers plus photocells to control the
back film feeding speed
3. back film feeding driven by one AC motor
4. AC inverter control motor to drive the hot cutting bar
5. Back document pocket film unwinder
6. Printing mark tracking photocell
7. Standard adhesive taper putter
8. Standard longitudinal sealing bar for back document pocket
9. Microsoft Computer control
FAQ :
Q1: How to visit our Factory? (not a trade company)
A: Option 1: Guangzhou Airport→ Wenzhou Airport→ Pick you up
Option 2: Shanghai Airport→ Wenzhou Airport or Rui’an Train
Station→Pick you up
Q2: How does your factory do the quality control?
A:“QUALITY FIRST " We purchase qualified parts, test the machine
every step when manufacturing.
Q3:Do you have after-sale service?
A: 1 Year Warranty and timeless maintenance service. One service
center in Germany.
Q4:How does a Courier Bag Making Machine work?
A:The machine operates by processing rolls of raw material,
typically polyethylene (PE) or polypropylene (PP) films. These
rolls are fed into the machine, which then cuts, seals, welds,
forms, and optionally prints and attaches handles to produce
finished courier bags.
Q5:What types of materials can be used with a Courier Bag Making
Machine?
A:Courier Bag Making Machines are designed to handle various types
of flexible packaging materials, including polyethylene (PE),
polypropylene (PP), and other similar thermoplastic films commonly
used for packaging applications.
Q6:What are the key features of a Courier Bag Making Machine?
A:Key features of a Courier Bag Making Machine include material
feeding, cutting, sealing, welding, bag forming, optional handle
attachment, optional printing capabilities, cutting, stacking, and
quality control measures.
Q7:What are the benefits of using a Courier Bag Making Machine?
A:The benefits of using a Courier Bag Making Machine include
increased production efficiency, reduced labor costs, consistent
product quality, customization options for printing and handle
attachment, and the ability to produce high-quality courier bags
for packaging and shipping applications.
