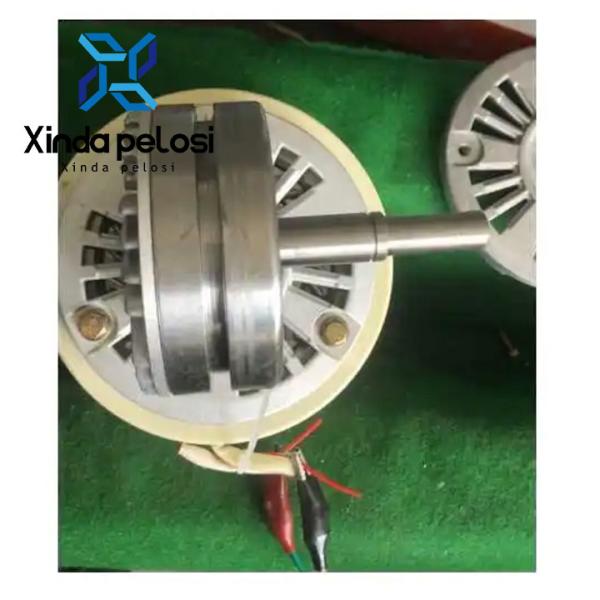

24V 12N 100nm Brake Magnetic Powder Brake Clutch For Bag Making
Machine Made In China
Specification :
1.Introduction of magnetic powder brake:
Magnetic powder brake can transmit torque based on electromagnetic
theory and the use of magnetic powder.It has the characteristics
which magnetizing current and transmit torque has a linear
relationship,It has advantages of fast response,simple structure,no
pollution,no noise,no shock and vibration,energy-saving and so
on.It is a versatile,superior performance of automatic control
components.Magnetic brake an also be used to buffer
starting,overload protection,speed control and so on.
2.Features of magnetic powder brake
1)The transmission torque has a linear relationship with the
magnetizing current. The size of the torque can get controlled
within large range. Under normal circumstance, the magnetizing
current has a linear relationship with transitive torque within
range of 5%-100% rated torque.
2)The friction part will generate heat inevitably or even destroyed
when it keep continuous sliding. But this device has a complete
cooling set, it will not generate a lot of heat after long time
running and it has a long service life.
3.Application of magnetic powder brake
It is widely used in printing machinery, paper industry machinery,
bag-making machinery, paper-making machinery , wire and cable
machinery,coil machinery,wire winding machines,strapping bag
machinery, textile machinery, weaving-dimensional machinery,
woodworking machinery, steel extruders, CNC lathes, specialized
machinery and so on.
4.Advantages of magnetic powder brake
1) High-precision torque control
2) Superior durability,long life
3) The stability of a fixed superior torque characteristics
4) Continuous operation of the use of sliding
5) Ink sleek,non-shock
6) Suitable for high-frequency operation
5.Models and specifications of magnetic powder brake
1)cellular type magnetic powder brake
Modle | Torque(N.m) | Current(A) | Votage(V) | Rotation speed | Weight(kg) |
(RPM) |
FZ 6K-1 | 6 | 0.8 | 24 | 1000 | 3 |
FZ 12K-1 | 12 | 1 | 24 | 1000 | 4.5 |
FZ 25K-1 | 25 | 1.5 | 24 | 1000 | 7.5 |
FZ 50K-1 | 50 | 1.8 | 24 | 1000 | 12 |
FZ 100K-1 | 100 | 2 | 24 | 800 | 20.5 |
FZ 200K-1 | 200 | 2.8 | 24 | 800 | 30 |
2)Singel shaft type magnetic powder brake
Modle | Torque(N.m) | Current(A) | Votage(V) | Rotation speed | Weight(kg) |
(RPM) |
FZ 6A-1 | 6 | 0.8 | 24 | 1400 | 3.5 |
FZ 12A-1 | 12 | 1 | 24 | 1400 | 6 |
FZ 25A-1 | 25 | 1.5 | 24 | 1400 | 8 |
FZ 50A-1 | 50 | 1.8 | 24 | 1400 | 14 |
FZ 100A-1 | 100 | 2 | 24 | 1000 | 28 |
FZ 200A-1 | 200 | 2.5 | 24 | 1000 | 50 |
FZ 400A-1 | 400 | 3 | 24 | 1000 | 75 |

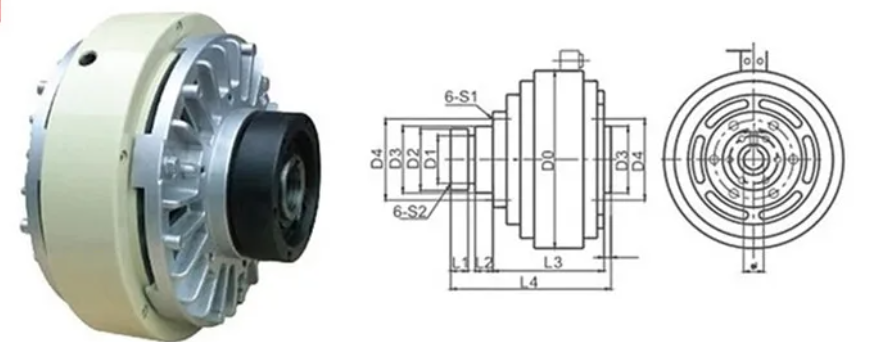

THE HOLE BRAKE:
THE SINGLE SHAFT BRAKE:
THE DOUBLE-SHAFT CLUTCH:
THE HOLE CLUTCH:
FQA:
1. How can I get the quotation?
Please tell us the model you want,then we can quote you
accordingly.
2. What’s your MOQ basis?
1 set.
3. What about the lead time for production?
Usually about 8days. It also depends on the order quantity and the
type of products.
4. What is the term of delivery?
We can arrange with EXW, FOB, CIF…etc. You can choose the most
convenient one or cost-effective way.
