PARAMETER
Pdoduct name | Bottom Sealing And Cutting Machine |
Product model | XDP-200ZD |
Power supply | 220V 50/60Hz |
Cutting length(mm) | 0.1-9999.9mm |
Cutting speed | 30-120pcs/min |
Heat sealing width | 1-480mm |
Cutting precision | 0.1mm |
Weight | 83kg |
Size (L*W*H) | 580*760*730(mm) |
Features:
1.Controlled by microcomputer, the length, speed and quantity can
be adjusted.
2.The overall structural design is reasonable and durable.
3.The operation is simple, and one machine equals to 3 to 5 works
instead of manual work.
4.The application scope is wide, and all kinds of materials and
other roll materials can be cut.
5.The blade with inlaid steel has higher hardness, wear resistance
and long service life.
6.The heat sealing device can be disassembled and replaced, the
temperature can be adjusted, suitable for sealing various materials
and thickness materials.
Material application
It is suitable for cutting various roll materials such as PE film,
roll film, PVC film, PET film, OPP film, PP film, heat shrinkable
film, anti-static film, printing and packaging film.

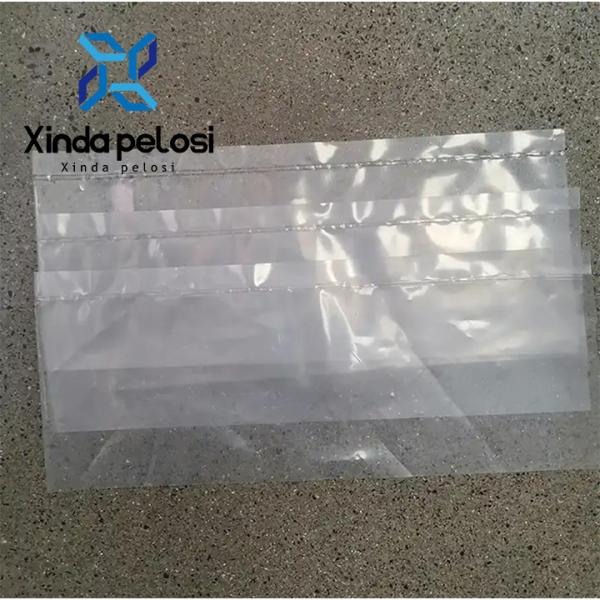

Cut samples
It is suitable for cutting various plastic bags such as PE flat
bags, PVC heat shrinkable bags, PET bags, OPP bags, PP bags,
anti-static bags, printed packaging bags, roll film packaging bags,
etc.
Product principle:
1. Automatic group accumulation and total cumulative count
2. Batch pause and delay time can be set
3. There are various manual operations for debugging
4.Fully automatic cutting of various plastic bags, flat bags, heat
shrinkable films, electrostatic bags and other materials
5. High-speed feeding, controlled by microcomputer program with an
accuracy of 0.1mm
6. High-speed stepping motor accurately controls cutting length and
speed
7. Cutting time protection; total setting; sub-setting; adjustable
timeout
8. The cutter speed is adjustable, all Chinese LCD display, export
or foreign companies can be customized English version
9. The length and speed are arbitrarily adjustable, fully automatic
cutting and automatic feeding, completely liberating labor
10.LCD large screen intuitive Chinese display, simple and
convenient operation; using special mechanical structure and
special tools,With special software control, it solves the problem
of uneven cutting in other manufacturers, reaching the level of the
slit and the length
11. Fast feeding speed, high cutting force, high cutting
efficiency, stable performance, cutting all kinds of hard and thick
materials, high cutting precision and straight cut
12. The heat sealing device can be disassembled and replaced, and
the temperature is adjustable, which is suitable for sealing
various materials and thickness materials.
